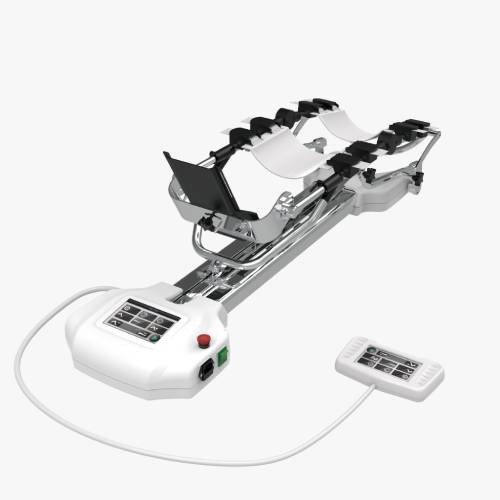

Spacare Knee CPM is a continuous passive motion device for knee rehabilitation after surgery and injury. It moves the joint automatically and regularly within the allowed range of motion, without requiring muscular effort from the patient. It helps maintain knee mobility, reduce stiffness, and support medical rehabilitation programs in hospitals.

Key Features

Automatic and regular knee movement during rehabilitation sessions.
Reduces reliance on the patient’s muscular effort during exercise.
Helps maintain joint mobility after surgery.
Supports knee rehabilitation programs in clinical settings.
Adjustable to suit the patient’s lower limb.
Special cushions and supports for the thigh, leg, and foot during use.
Handheld control unit for easy operation and session monitoring.

Use Cases

Rehabilitation after knee surgery.
Helping manage joint stiffness after periods of immobilization.
Use as part of medical rehabilitation plans in hospitals.
Supporting early knee movement under medical supervision.

Technical Specifications

Brand: Spacare.
Product type: Knee Continuous Passive Motion device.
Operation method: Integrated electric motor with handheld control unit.
Safety system: Emergency stop button.
Supports: Cushions and supports designed for lower-limb support.
Structural adjustment: Mechanical adjustment handles to set lower-limb length.
1. Range of Motion-Knee Joint: Range from -5° to 120°, with highly precise control through integrated sensors and flexible operating angles. - Hip Joint: Range from0° or 25° to 100° depending on the positioning and adjustment of the axes to accommodate natural thigh movement. - Ankle Joint – Optional: Range from 0° to 40°.2. Operating Specifications & Speed- Speed Range: Adjustable across 9 different levels, with progressive movement speeds ranging from 0.5° to 3.5° per second (up to4°/secondin some updated versions, depending on the patient's tolerance). - **Therapy Session Time: The digital timer can be set for continuous operation for up to 240 minutes (4 hours) or configured for unlimited operation. - **Training Programs: Includes 3 built-in exercise programs: Normal Mode, Angle Mode, and Speed Mode.3. Dimensions & Patient Fit (Adjustable Frame)- Femur Alignment Range:Telescopically adjustable from32 to 49 cm. - Tibia Alignment Range: Telescopically adjustable from25 to 57 cm - Suitable Patient Height: Designed to comfortably accommodate adult patients with heights ranging from1.55 to 1.90 m following the natural physiological alignment of the human body.4. Electrical & Technical Specifications- Power Supply: Compatible with 100–240 V AC 50/60 Hz. -Power Consumption:Energy-efficient, with an input power of70 VA. - Noise Level:** Quiet and stable motor operation with a noise level of ≤60 dB, making it suitable for quiet medical environments and hospital rooms.5. Advanced Safety & Control Systems- Dual Control Interface: Equipped withtwo color touchscreens: a main touchscreen integrated into the device base and a wired color touchscreen on the handheld controller, allowing the patient to operate the device while lying in bed. - Automatic Overload Protection: Equipped with an intelligent torque sensor that automatically reverses or safely stops the movement in case of sudden muscle spasm or excessive resistance, helping protect the patient's joints and ligaments from injury. - Dual-Bar Stabilization System: The mechanical design incorporatesdual support bars to provide enhanced leg stability during movement and help prevent joint misalignment.Operation method: Integrated electric motor with handheld control unit.Safety system: Emergency stop button.Supports: Cushions and supports designed for lower-limb support.Structural adjustment: Mechanical adjustment handles to set lower-limb length.
