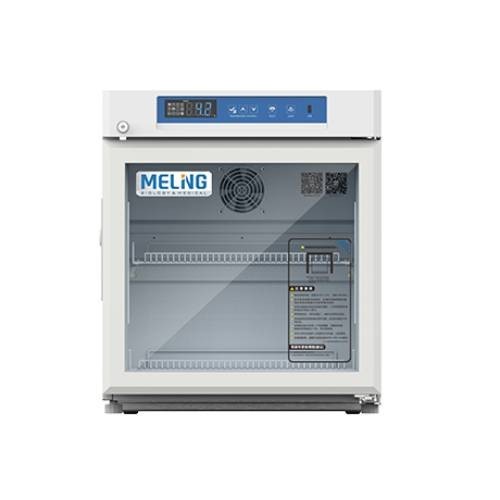

Pharmacy Refrigerator YC-75 L

The YC-75L medicine refrigerator is a vertical pharmacy and laboratory refrigerator designed for refrigerated storage within a temperature range of 2 to 8°C. It is used to store biological products, vaccines, medicines, and reagents in environments that require precise temperature control in hospitals, clinics, pharmacies, and pharmaceutical factories.

Key Features

• Intelligent temperature control with a precise electronic controller and highly sensitive sensors.
• 0.1°C display accuracy with a digital screen to monitor the average temperature inside the cabinet.
• Forced-air cooling system with automatic defrost and temperature uniformity within 2°C.
• Well-known brand compressor and condenser for improved cooling performance.
• R600a refrigerant, free of HCFC compounds.
• Audible and visual alarms for high or low temperature, high ambient temperature, power failure, low battery, sensor failure, door open, USB recorder failure, communication failure, and remote alarm.
• Lockable front door with full-height handle and door heater.
• Built-in USB data logger with 10-minute recording and 2 years of data storage support.
• RS485 interface and remote alarm connection as standard accessories.
• Internal LED lighting and a 25 mm access port.
• Powder-coated exterior and sprayed aluminum plate interior.
• Coated steel wire shelves and 2 wheels with 2 leveling feet.

Technical Specifications

• Model: YC-75L
• Type: Vertical
• Capacity: 75 L
• Inner dimensions: 444 × 440 × 536 mm
• Outer dimensions: 540 × 560 × 764 mm
• Packing dimensions: 575 × 617 × 815 mm
• Net/Gross weight: 41 / 44 kg
• Temperature range: 2 - 8°C
• Ambient temperature: 16 - 32°C
• Cooling performance: 5°C
• Climate class: N
• Controller: Microprocessor
• Display: Digital display
• Compressor: 1
• Cooling method: Forced-air cooling
• Defrost mode: Automatic
• Refrigerant: R600a
• Insulation thickness: Left/Right 48 mm, Rear 50 mm
• Outer material: Powder-coated
• Inner material: Sprayed aluminum plate
• Number of shelves: 3
• Door lock with key: Yes
• Lighting: LED
• Access port: 1, 25 mm diameter
• Wheels: 2 + 2 leveling feet
• Data logger: USB / 10-minute recording / 2 years
• Door with heater: Yes
• Power supply: 220-240V / 50Hz
• Power: 115 W
• Power consumption: 1.34 kWh / 24h
• Rated current: 0.92 A

Applications

• Pharmacies
• Hospitals
• Disease prevention and control centers
• Healthcare centers and clinics
• Pharmaceutical factories

Standard Accessories

• RS485 interface
• Remote alarm connection
• Backup battery
