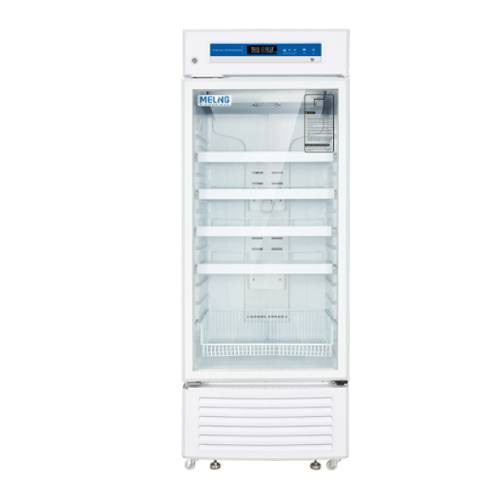

Pharmacy Refrigerator YC-315 L

Vertical 315-liter medicine refrigerator designed for storing biological products, vaccines, medicines, and reagents within a controlled temperature range of 2 to 8°C. It uses air cooling and electronic control to help maintain stable cabinet temperature.

Main Features

• Seven sensors for improved temperature monitoring and control accuracy.
• Air cooling with automatic defrost for better temperature uniformity.
• High-brightness digital display for temperature reading.
• USB interface for data logging and export, with continuous storage via U-disk.
• RS485 port and remote alarm port for monitoring system connection.
• Audible and visual alarm system for high or low temperature, door open, power failure, sensor fault, and communication fault.
• Heated door with LOW-E glass to reduce condensation.
• Powder-coated steel wire shelves, door lock, and internal LED lighting.

Application Range

Suitable for storing biological products, vaccines, medicines, and reagents in pharmacies, pharmaceutical factories, hospitals, disease prevention and control centers, and clinics.

Technical Specifications

• Model: YC-315L
• Cabinet type: Vertical
• Capacity: 315 L
• Temperature range: 2 to 8°C
• Ambient temperature: 16 to 32°C
• Cooling performance: 5°C
• Climate class: N
• Controller: Microprocessor
• Display: Digital display
• Compressor: 1 piece
• Cooling method: Air cooling
• Defrost mode: Automatic
• Refrigerant: R600a
• Insulation thickness: Left/right 35 mm, bottom 52 mm
• Exterior material: Powder-coated material
• Interior material: HIPS
• Shelves: 4+1
• Door lock with key: Yes
• External lock: Yes
• Lighting: LED
• Access port: 1 piece, 25 mm diameter
• Casters: 4 + 2 leveling feet
• Data logging: USB / every 10 minutes / 2 years
• Heated door: Yes
• Power supply: 220-240~/50
• Rated power: 245 W
• Energy consumption: 3.37 kWh/24h
• Rated current: 1.35 A
• Net/Gross weight: 87/99 kg
• Interior dimensions: 580 × 533 × 1122 mm
• Exterior dimensions: 650 × 673 × 1762 mm
• Packing dimensions: 717 × 732 × 1805 mm

Alarms and Reliability

• High/low temperature alarm.
• Ambient temperature high alarm.
• Condenser over-temperature alarm.
• Power failure and low battery alarm.
• Sensor fault, door open, and built-in data logger USB fault alarm.
• Start delay and stop interval protection function.
• Optional printer.
