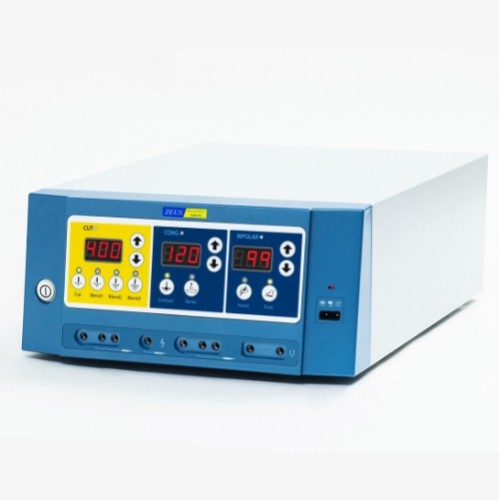

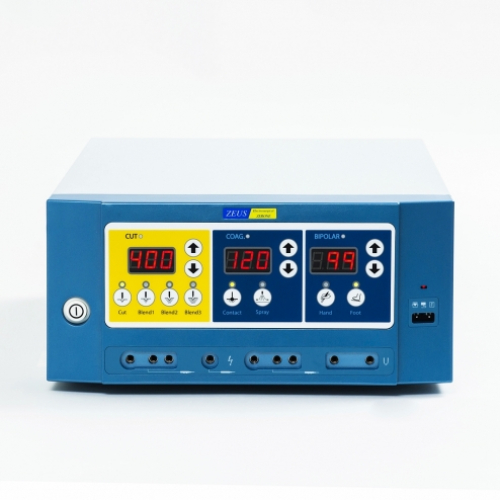

ZERONE Radio Frequency Cautery Electrosurgical Unit ZEUS-400 W

ZERONE High-Frequency 400W Electrosurgical Unit is designed for cutting and coagulation in surgical procedures, with support for multiple operating modes and built-in monitoring and safety functions. It is used in hospitals and surgical environments that require controlled power output, clear operating status verification, and compatibility with a wide range of surgical applications.

Main Features

• Microprocessor for strong and stable power output.
• Digital display window for direct output value checking.
• User storage function with 10 memory spaces.
• Multiple operating modes including cut, coagulation, and bipolar cut.
• Operating status verification through sound and indicator light.
• Automatic detection of input power frequency.
• Bipolar cut function support in the upgraded version.

Applications

• General surgery.
• Dermatology.
• Vascular surgery.
• Gynecology.
• ENT.
• Pediatric surgery.
• Urology.
• Orthopedics.
• Endoscopy.
• Oral surgery.
• Plastic surgery.

Technical Specifications

• Device name: ZEUS-400/300/200 Electrosurgical Unit.
• Version: Upgraded version.
• Main frequency: 400, 500 kHz.
• Power supply: 120V or 230V AC, 50/60Hz.
• Protection class: Class 1, CF type.
• Dimensions: 330 × 455 × 150 mm.
• Weight: 13.0 kg.
• Certifications: CE, GMP.
• Brand: ZERONE.

Output Specifications

• Pure cut: 400W / 300Ω.
• Blend 1: 250W / 300Ω.
• Blend 2: 200W / 300Ω.
• Blend 3: 150W / 300Ω.
• Contact coagulation: 120W / 300Ω.
• Spray coagulation: 100W / 300Ω.
• Bipolar coagulation: 100W / 100Ω.
• Bipolar cut: 100W / 200Ω.

Safety Features

• Built-in fuse prevents overcurrent from flowing through the equipment.
• When the patient plate is disconnected from the unit, a red warning light flashes.
• If any button on the double handle or any pedal on the double foot switch is pressed, an alarm sounds and the unit does not operate.
• REM function monitors the size of the contact area between the patient and the pad.
• If the contact area is not suitable, high-frequency current is automatically blocked.
• The housing is fully grounded to allow leakage current to flow to the ground.

FAQ

Does the device support bipolar coagulation?

Yes, the device supports bipolar coagulation, and the upgraded version also supports bipolar cut.

Can the settings be saved?

Yes, 10 memory spaces are available using the user storage function.

What is the protection class of the device?

The protection class is Class 1, CF type.
