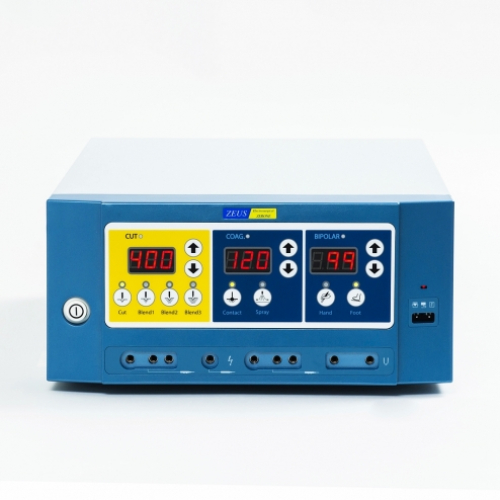

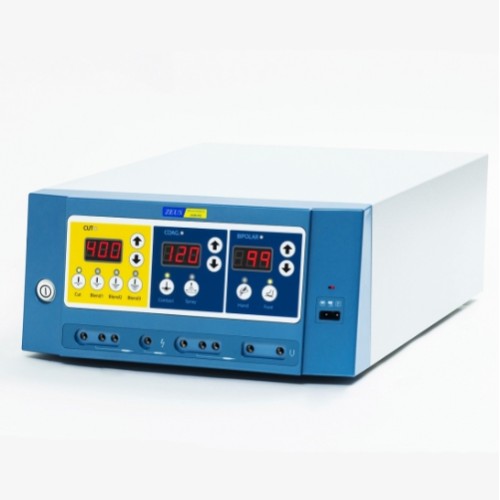

ZERONE Radio Frequency Cautery Electrosurgical Unit ZEUS-300 W

ZERONE ZEUS-400/300/200 Electrosurgical Unit is used in surgical procedures that require cutting, coagulation, and tissue control, with support for monopolar and bipolar operation in multiple working modes. It is used in hospitals and various surgical environments to provide controlled electrical output, with operational monitoring and built-in safety functions.

Main Features

• Display screen showing the output value in numbers for easy verification of settings during operation.
• Multiple operating modes including pure cut, blend, contact coagulation, spray coagulation, bipolar coagulation, and bipolar cut.
• User storage function with 10 memory slots.
• Microprocessor support for strong and stable power output.
• Automatic detection of input power frequency.
• Operating status can be checked by sound and indicator light.
• Bipolar cut support in the upgraded version.
• Manual bipolar check is performed when the forceps make contact.

Areas of Use

• General surgery
• Dermatology
• Vascular surgery
• Gynecology
• ENT
• Pediatric surgery
• Urology
• Orthopedic surgery
• Endoscopy
• Oral surgery
• Plastic surgery

Technical Specifications

• Brand: ZERONE
• Device name: ZEUS-400/300/200 Electrosurgical Unit
• Version: Upgraded version
• Main frequency: 400, 500 kHz
• Power source: AC 120 V or 230 V, 50/60 Hz
• Protection class: Class 1, Type CF
• Dimensions: 330 × 455 × 150 mm
• Weight: 13.0 kg
• Certificates: CE, GMP

Output Capacity by Mode

• Pure cut: 300 W in ZEUS-300
• Blend 1: 230 W in ZEUS-300
• Blend 2: 180 W in ZEUS-300
• Blend 3: 120 W in ZEUS-300
• Contact coagulation: 100 W in ZEUS-300
• Spray coagulation: 80 W in ZEUS-300
• Bipolar coagulation: 80 W in ZEUS-300
• Bipolar cut: 80 W in ZEUS-300

Safety Functions

• Built-in fuse in the power circuit board to prevent overcurrent.
• When the patient plate disconnects from the unit, a red warning light flashes.
• When the button on the dual handle or the pedal on the dual footswitch is pressed, an alarm sounds without starting the unit.
• REM function monitors the contact area between the patient and the pad and blocks high-frequency current when it is not suitable.
• The chassis is fully grounded to allow leakage current to flow to ground.

Frequently Asked Questions

What type of device is it?

It is an electrosurgical unit used for cutting and coagulation in surgical procedures.

Does it support bipolar operation?

Yes, it supports bipolar coagulation and bipolar cut in the upgraded version.

How many storage settings are available?

The device provides 10 user storage slots.

What power source is required?

It operates on AC 120 V or 230 V, 50/60 Hz.
