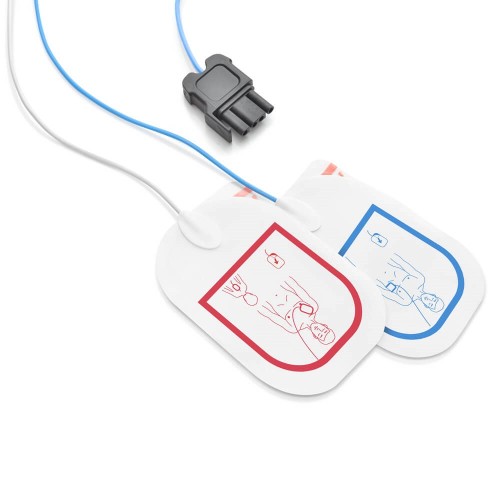

The MR62 multifunction electrode pads are compatible with Mindray BeneHeart devices and are used for ECG monitoring, defibrillation, cardioversion, and external pacing. Designed for use with adults and children weighing more than 25 kg, they provide direct connection between the device and the patient in emergency resuscitation applications.

Key Features

Pre-applied gel and integrated self-adhesive backing for easy setup.
Single-use and non-sterile.
Support ECG monitoring, defibrillation, cardioversion, and external pacing.
Compatible with Mindray BeneHeart D1, D2, D3, D5, and D6 devices.
Support automatic verification of pad validity and device connection when used with BeneHeart D1.
Suitable for adults and children weighing more than 25 kg.
Resistant to operational use for up to 50 shocks at 360J.

Technical Specifications

Product name: Mindray multifunction electrode pads.
Model: MR62.
Part number: 115-035426-00.
Active surface area: 82 cm² per electrode.
Lead wire length: 1 m pre-connected, with 0.25 m cable outside the pouch.
Maximum monitoring time: 24 hours.
Maximum number of defibrillation shocks: 50 shocks at 360J.
Maximum external pacing duration: 1 hour at 140 mA / 120 bpm, pulse duration 20 ms.
Storage conditions: between 0 and 50°C.
Extreme storage conditions: up to 10 days between -40 and 75°C.
Shelf life from date of manufacture: 36 months.
MDD classification: Class IIb.
