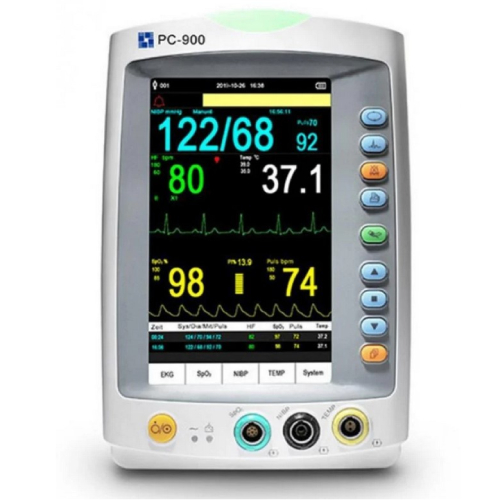

Vital Sign Monitor PC900

Creative Vital Signs Monitor With Parameters: SpO2, NIBP PC-900

PC-900 Vital Signs Monitor is a small multi-parameter patient monitor, which can monitor the vital physiological parameters: Non-Invasive Blood Pressure (NIBP), Pulse Oxygen Saturation (SpO2), Electrocardiogram (ECG), Temperature (TEMP).

Technical Specifications:
NIBP Monitoring
Technology: Oscillometric method
Pneumatic pressure measuring range: 0 mmHg~300mmHg
Accuracy of pressure measurement: ±3 mmHg
Standard measurement range:
Systolic: Adult: 40-255mmHg
Diastolic: Adult: 10-195mmHg
MAP: Adult: 20-215mmHg
NIBP accuracy:
Maximum mean error: ±5 mmHg
Maximum Standard deviation: 8 mmHg
Measurement mode: Manual, Auto, STAT
SpO2 Monitoring
SpO2 measurement range: 35%~100%
SpO2 measurement accuracy: 0.4%~5%
Low perfusion performance: 0.4%~5%
Pulse rate measurement range: 30bpm~240bpm
Pulse rate measurement accuracy: ±2bpm or 2% whichever is greater
ECG and TEMP Monitoring
Heart rate range: 20bmp~250bmp
TEMP measurement range: 25℃~45℃
Accuracy: ±2bpm or 2% whichever is greater (ECG)
0.1℃ (TEMP)
Printer
Type: Built-in thermal printer (optional)
Recording speed: 25mm/s
Other Specifications
Power supply: 100~250VAC and 50/60 Hz
Internal power supply: 12VDC (rechargeable)
Battery specification: 12V 2.3AH(sealed lead-acid battery)
Models Selectable
PC-900: For ECG, SpO2 and NIBP monitoring
PC-900S: For SpO2 monitoring
PC-900N: For NIBP monitoring
PC-900SN: For SpO2 and NIBP monitoring
PC-900A: For SpO2 and CO2 monitoring
